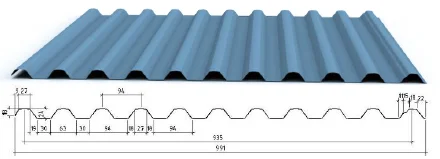

• MEASUREMENT +

    Feed Coil                                     : 1219 mm

    Effective Width                           : 935 mm

    Depth of Rib                               : 24 mm

    Width of The Valley                   : 30 mm

    Crest of the Rib                          : 94 mm

  • THICKNESS +

    Standard BMT

    0.35 MM & 0.40 MM


    Non standard BMT based on request

    0.30 MM, 0.45 MM, 0.50 MM, 0.55 MM, 0.60 MM, 0.65 MM, 0.70 MM

  • STRENGTH +

    G-550 = YIELD STRENGTH 550 MPA

  • COATINGS +

    AZ-100 = 100 GR/M2

    AZ-150 = 150 GR/M2

    AZ-200 = 200 GR/M2

    XAL = ALUMINIUM

  • AVAILABLE FINISHES +

    ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ultra (AZ-200), XAL, KIRANA® (AZ-100), clean COLORBOND® (AZ-150), COLORBOND® ultra (AZ-200), COLORBOND® XAL

  • APPLICATION +

    ROOFING, CLADDING, FASCIA, TANK COVERING

  • ADVANTAGES +

    1. Roofing with anti capillary side laps

    2. Minimum recommended thickness : 0.35 mm bmt/0.40 mm tct

    3. Minimum recommended roof pitch : 3 degree

    4. Can be used for curvature roofing type

    5. Can be installed with overlaps (minimum recommended overlaps 200 mm)

    6. Can be used for roofing with more than one side-overlaps

    7. Fasten to steel using Hexagonal SDS with washer CTEKS 12-14x50 for roofing or CTEKS 12-14x20 for walling only

    8. Fasten to timber using Hexagonal SDS with washer CTEKS 12-11x65 for roofing or CTEKS 12-11x25 for walling only

    9. Fastener for side laps using Hexagonal SDS with washer CSP 10-16x16

    10. Custom length upto 20m for trailer transporting, more than 20 m for roll on site/roll on top/mobile elevated roofing



  • DISADVANTAGES +

    1. Posibility of leakage due to washer failure

  • TECHNICAL DATA +

    Minimum Roof Pitch
    3 degress (1:20)

    Min Radius for Curve

    Spring Curve R = + 25 m

    Crimp Curve R = + 0.60 m


    MAXIMUM SUPPORT SPACINGS

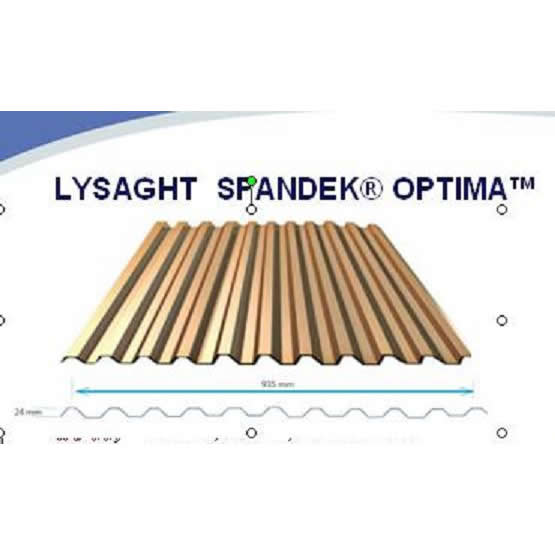

    LYSAGHT® SPANDEK OPTIMA™
    Type of Span
    Base Metal Thickness (mm)
    0.35 0.40
    Roof (mm)
    Single Span
    End Span
    Internal Span

    Stiffened Overhang

    975
    1225
    1300
    150
    200

    1130
    1700
    2150
    150
    200

    Walls (mm)
    Single Span
    End Span
    Internal Span
    Overhang


    2100
    2600
    3300
    150

    2150
    2500
    3300
    150


    Maximum roof lenghts for drainage measured drom ridge to gutter (m)

    Peak rainfall
    intensity (mm/hr)
    Roof Slope (degrees)
    2 3 5 7.5 10
    100 107 122 147 170 191
    150 71 82 98 113 127
    200 54 61 73 85 95
    250 43 49 59 68 76
    300 36 41 49 57 64
    400 27 31 37 43 48
    500 21 24 29 34 38



    Roll On-Site Based On Request

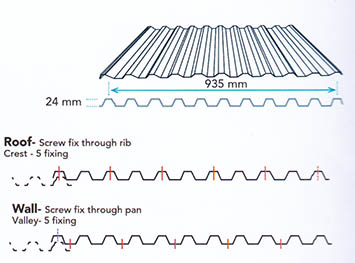

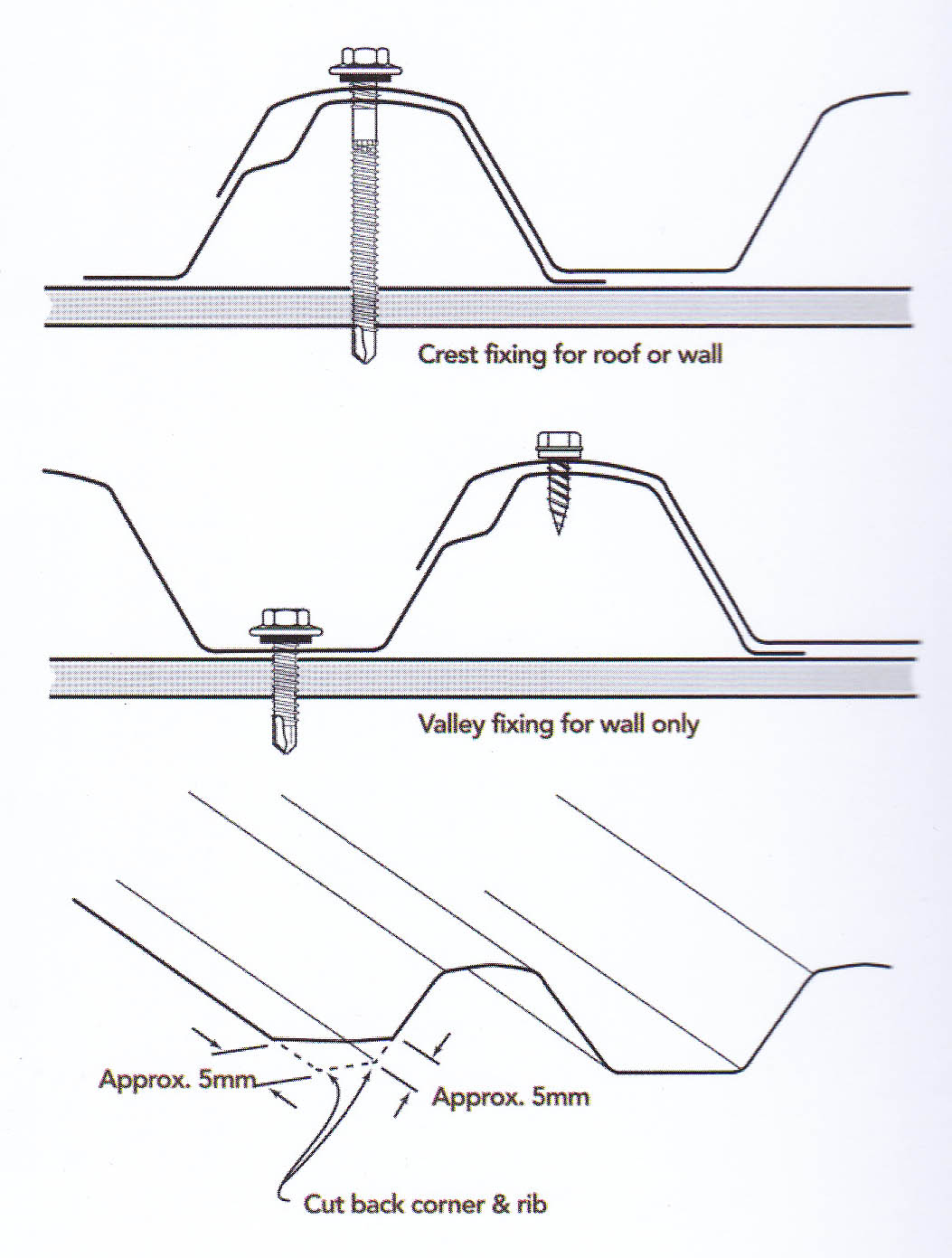

  • RECOMMENDED FASTENERS AND ACCESSORIES +



    Location

     Type of fixing

    Details

    Type of Fasteners

    Capacity Drilling

    Roofing

    Crest  fixing

    Cteks 12-14x 50 HGS

    6.5 mm

    Walling

    Valley Fixing



    Cteks 12-14 x 20 HWFS

    6.5 mm



    Sidelap fixing



    CSP 10-16 x 16 HWFS

    2.5 mm
