LYSAGHT CRIMP CURVE®
-
Attribute 1 +
-
Attribute 2 +
-
Attribute 3 +
-
Attribute 4 +
-
Attribute 5 +
-
FINISHES AVAILABLE +
ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ultra (AZ-200), XAL, KIRANA® (AZ-100), clean COLORBOND® (AZ-150), COLORBOND® ultra (AZ-200), COLORBOND® XAL
-
APPLICATION +
ROOFING, FASCIA
-
THICKNESS +
Standard BMT
0.4 mm
Non standard BMT based on request -
TECHNICAL DATA +

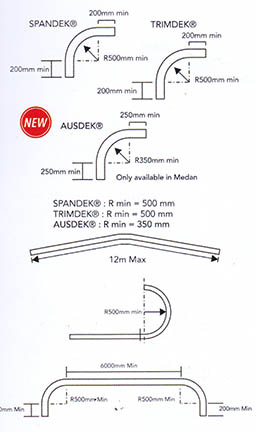

Minimum radius of curvature for convex is 500mm and 550mm for concave to underside or pan of sheet, minimum straight lengtH of sheet at one end of a curve is 200mm.
TRIMDEK® : R min = 500mm
SPANDEK® : R min = 500mm
AUSDEK® : R min = 350mm NEW Only available in Medan -

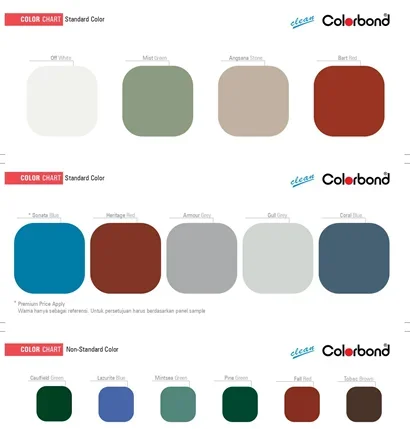

AVAILABLE FINISHES +
ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ultra (AZ-200), XAL, KIRANA® (AZ-100), clean COLORBOND® (AZ-150), COLORBOND® ultra (AZ-200), COLORBOND® XAL
