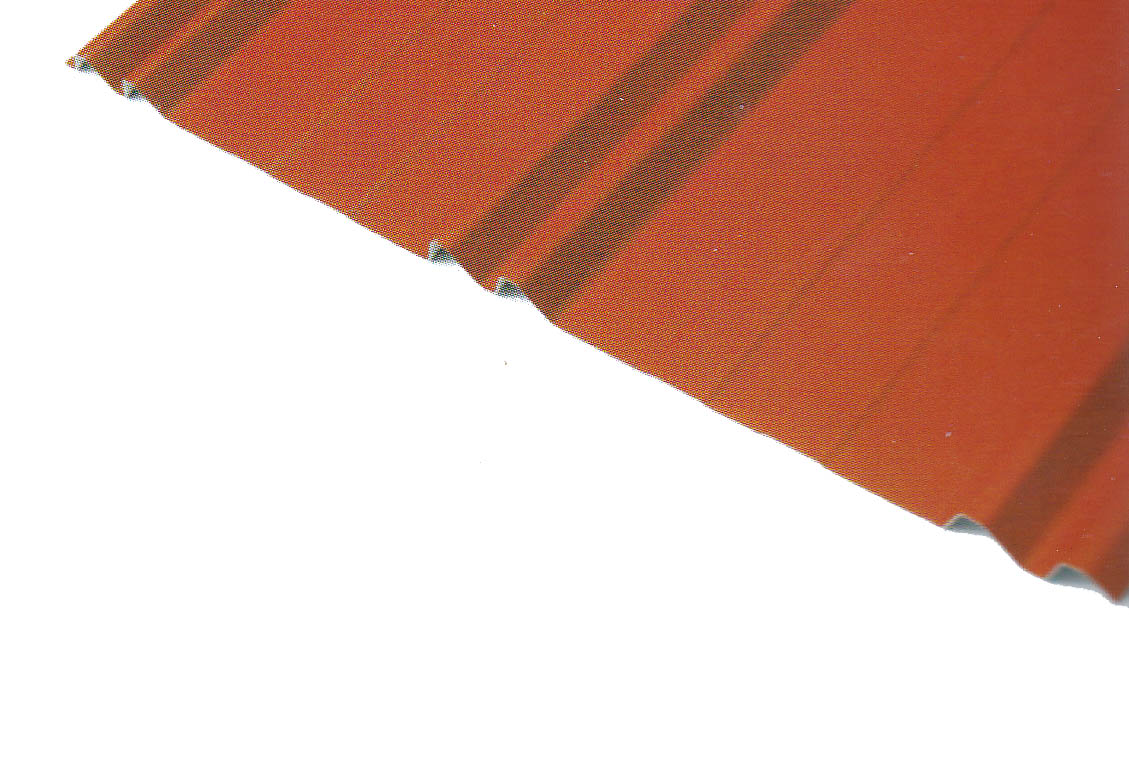

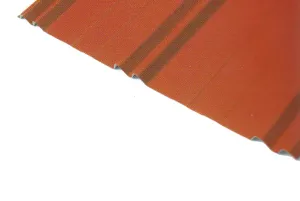

LYSAGHT V-CRIMP®

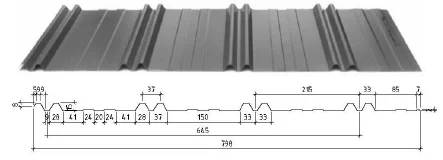

Feed Coil                               : 940 mm

Effective Width                     : 645 mm

Depth of Rib                          : 18 mm

Width of The Valley                        : 150 mm

Crest of the Rib                               : 37 mm dan 215 mm

Standard BMT

0.35 MM & 0.40 MM

Non standard BMT based on request

0.30 MM, 0.45 MM, 0.50 MM, 0.55 MM, 0.60 MM, 0.65 MM, 0.70 MM

G-550 = YIELD STRENGTH 550 MPA

AZ-100 = 100 GR/M2

AZ-150 = 150 GR/M2

AZ-200 = 200 GR/M2

XAL = ALUMINIUM

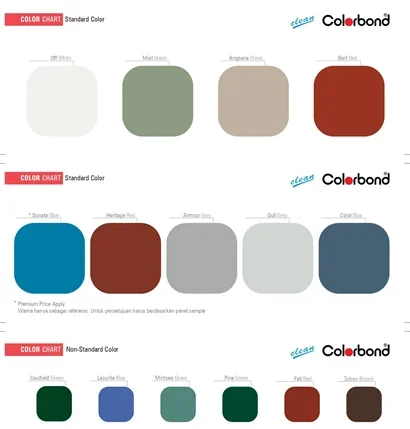

ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ULTRA (AZ-200), XAL, KIRANA® (AZ-100), CLEAN COLORBOND® (AZ-150), COLORBOND® ULTRA (AZ-200), COLORBOND® XAL

1. Suitable for  Walling application

2. Fix with ease and speed

3. Can be used on interior and exterior walls and straight.

4. Profile can be installed both vertically and horizontally.

5. Economical  profile due to wider cover width.

6. Due to strength, spanning ability,lightness and rigidity,wide support spacings can be used with safety

1. Should not be recommended for roofing

CLADDING, FASCIA, TEMPORARY FENCES, CEILING

MASS LYSAGHT V-CRIMP®

Tabel Angin Hisap

Tebal 0.40 mm BMT
