LYSAGHT TRIMDEK®

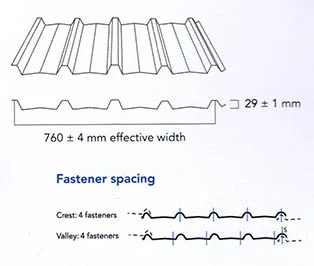

Feed Coil                                     : 940 mm

Effective Width                           : 760 mm

Depth of Rib                               : 29 mm

1. Posibility of leakage due to washer failure

1. Roofing with anti capillary side laps

2. Minimum recommended thickness : 0.35 mm bmt/0.40 mm tct

3. Minimum recommended roof pitch : 3 degree

4. Can be used for curvature roofing type

5. Can be installed with overlaps (minimum recommended overlaps 200 mm)

6. Fasten to steel using Hexagonal SDS with washer CTEKS 12-14x50 for roofing or CTEKS 12-14x20 for walling only

7. Fasten to timber using Hexagonal SDS with washer CTEKS 12-11x65 for roofing or CTEKS 12-11x25 for walling only

8. Fastener for side laps using Hexagonal SDS with washer CSP 10-16x16

9. Custom length upto 20m for trailer transporting, more than 20 m for roll on site/roll on top/mobile elevated roofing

AZ-100 = 100 GR/M2

AZ-150 = 150 GR/M2

AZ-200 = 200 GR/M2

XAL = ALUMINIUM

G-550 = YIELD STRENGTH 550 MPA

ROOFING, CLADDING, FASCIA

Standard BMT

0.35 MM & 0.40 MM

Non standard BMT based on request

0.30 MM, 0.45 MM, 0.50 MM, 0.55 MM, 0.60 MM, 0.65 MM, 0.70 MM

Minimum Roof Slope

3 degress (1:20)

Min Radius for Curve

Spring Curve R = + 25 m

Crimp Curve R = + 0.50 m

Max. Roof Length for Drainage

Roll On-Site/Mobile Elevated Roll Forming Based On Request

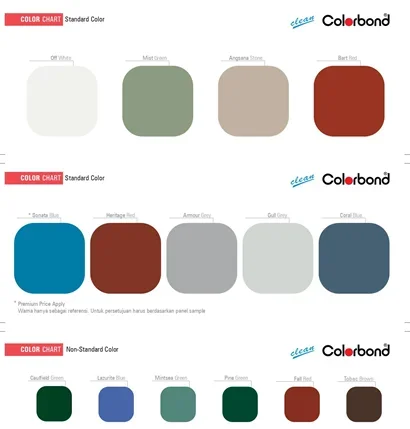

ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ultra (AZ-200), XAL, KIRANA® (AZ-100), clean COLORBOND® (AZ-150), COLORBOND® ultra (AZ-200), COLORBOND® XAL
