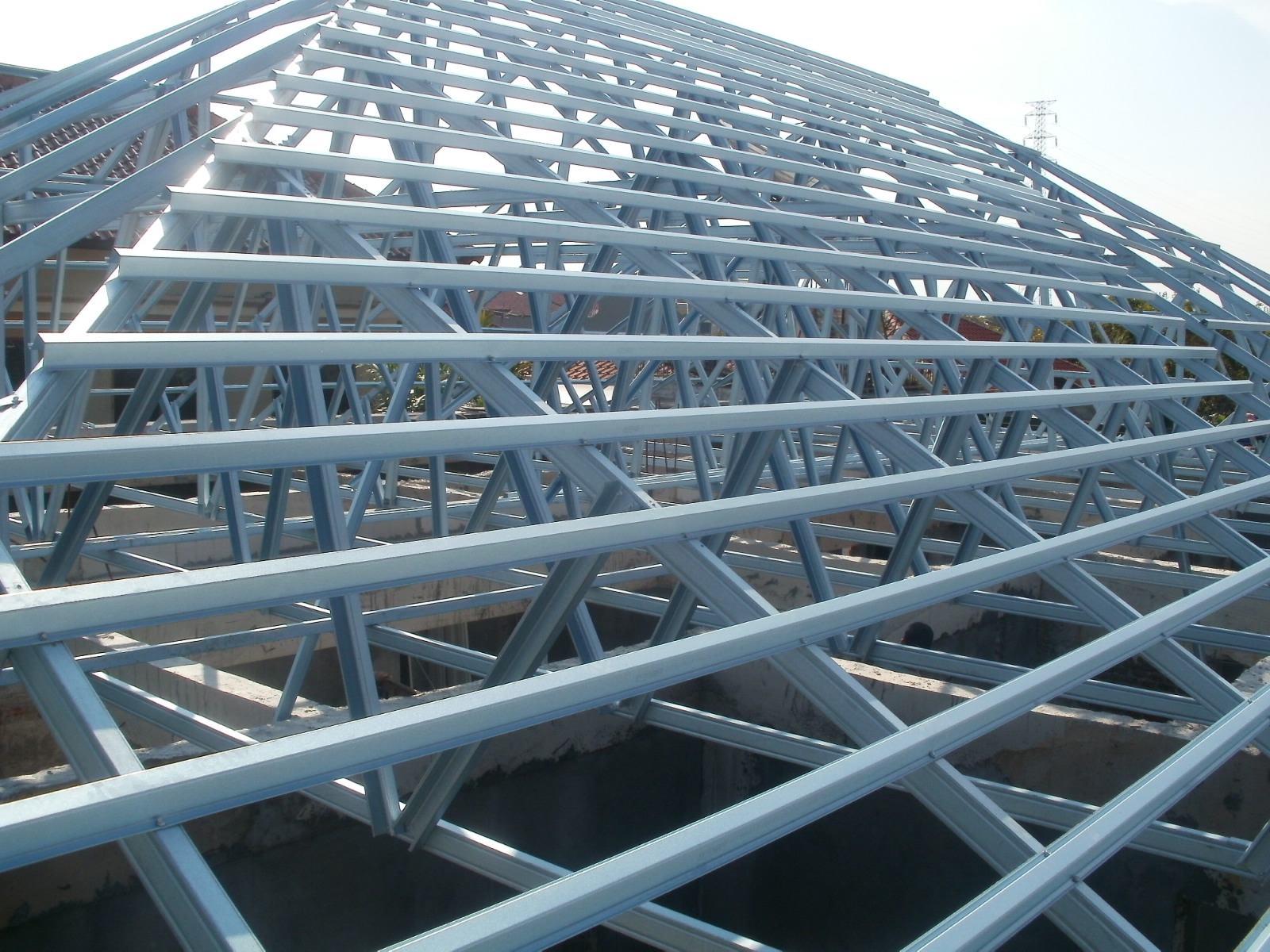

SMARTRUSS® TRUECORE

1. High tensile strength : 550 MPa yield strength

2. Structural load optimization : requires less building material, reduces overall structural and lifting costs

3. Corrosion-resistant coating technology

4. Conforms to AS/NZS 1365 : 1996 1 (tolerances for flat-rolled steel products)

5. Conforms to AS 1397 : 2001 (steel sheet and strip - Hot dipped Zinc-coated or Aluminium/Zinc-coated)

6. Certified with SNI 4096 : 2007 (BJ LAS G550 AS150)

7. Truecore steel coated with a 55% aluminium, 43.5% zinc, 1.5% silicon alloy coating which outperforms normal zinc galvanized steel by upto 4 times

8. AZ150 coating class (approximately 50 micrometer coating thickness) total both sides

1. Material consistency

2. Fire resistant

3. Unaffected by termites

4. Longevity

5. Less installation errors

6. Unaffected by warping



1. Light and easy handling

2. Welding not required and screw fastened

3. Speed of construction

4. Does not require painting

5. Corrosion resistant

6. No material wastage

1. 4 X Stronger protection

2. Superior cut edge protection

3. Better tight bend performance

1. BLUESCOPE ANTI RUST WARRANTY

2. BLUESCOPE STRUCTURAL WARRANTY

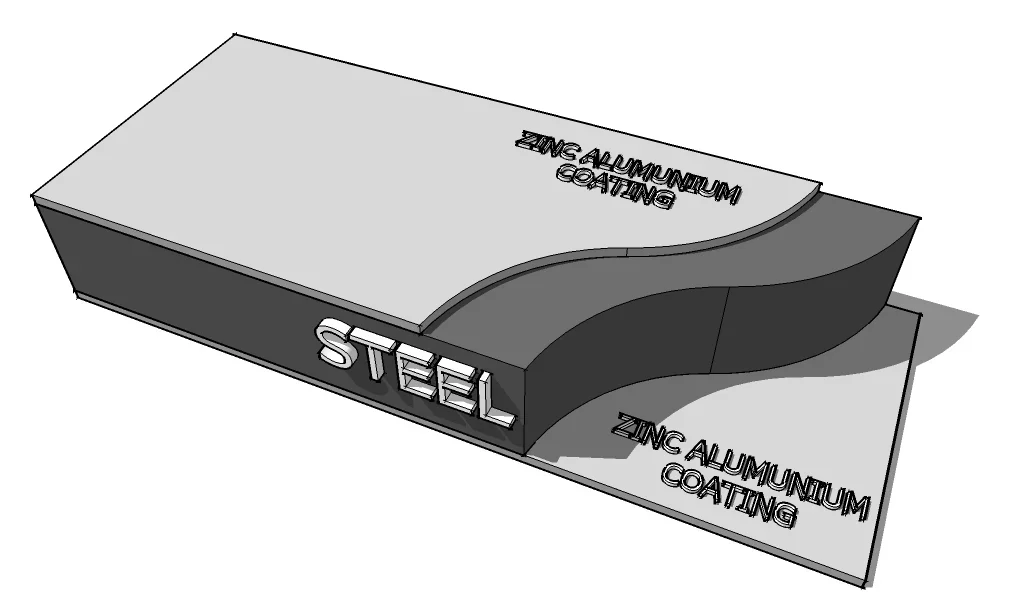

Truecore steel coated with a 55% aluminium, 43.5% zinc, 1.5% silicon alloy coating

High tensile strength : 550 MPa yield strength

AZ150 coating class

ELASTICITY MODULUS = 2.1 x 10⁵ MPA

SHEAR MODULUS         = 8 x 10⁴ MPA
