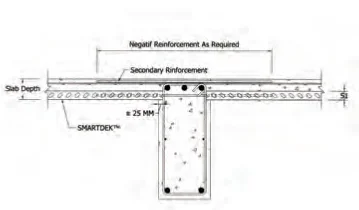

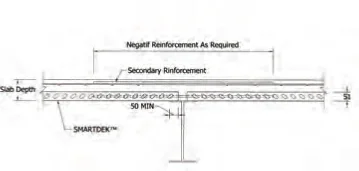

SMARTDEK GALVANIZE Z-275

EFFECTIVE WIDTH = 960 MM

HEIGHT                   = 51 MM

RIB WIDTH             = 122.5 MM

Z-275 = 275 GR/M2

G-550 = YIELD STRENGTH 550 MPA

STANDARD

0.70 BMT

NON STANDARD

1.00 BMT, 1.20 BMT





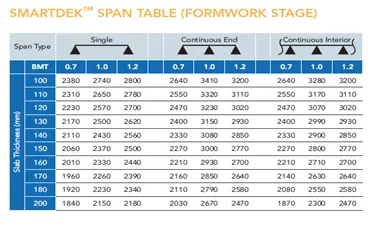

SECTION PROPERTIES  SMARTDEK®
				Base metal Tickness - BMT ( mm )
		Unit	Symbol	0.70	1.00	1.20
Area		Mm²/m	A	889.69	1269.70	1523.96
Enertia Moment		Mm²/m	Ix"	409375.50	584791.00	701979.17
Section Modulus		Mm²/m	Zx"	16974	24357.17	29330.33
Mass		Kg/m2		7.38	10.34	12.33





0.70 BMT = 7.38 KG/M2

1.00 BMT = 10.34 KG/M2

1.20 BMT = 12.33 KG/M2

1. Greater Durability,

·         Superior corrosion protection

2. Superior Performance

·       Steel and concrete composite slabs are lighter and stronger than most conventional slabs

·       Designed to prevent any longitudinal slip or transverse movement between the steel and concrete in the slabs itself

3. Economical

·         Weight savings can be passed on to other areas of the design

·         Steel decking acts as permanent formwork, saving both time and money

·         Concrete displacement savings

4. Speedy, Safe Construction

·         Composite slab effectively acts as a safe  working platform

·         Once slab is poured ,following trades can get on with their jobs almost immediately

·         Work can continue unhindered on the floors above

5. Megafloor™ Software

       ·         Powerful tool to design decking as formwork and composite
