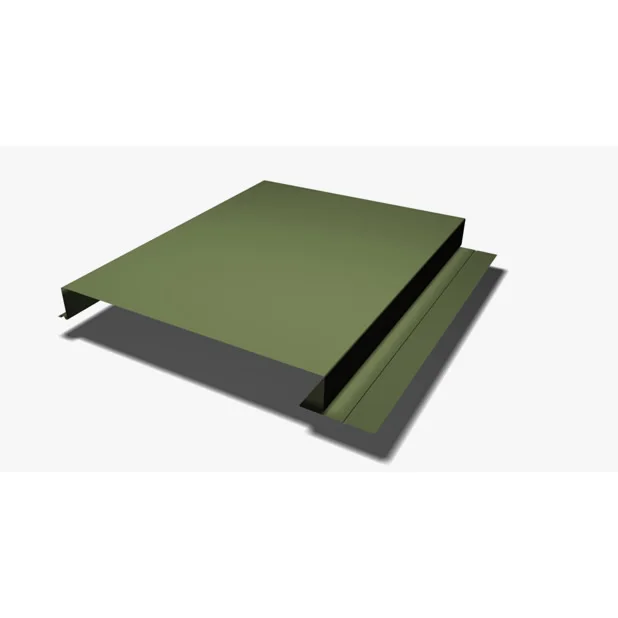

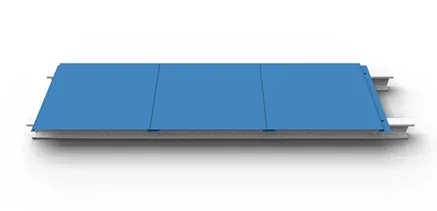

LYSAGHT® PRESTIGE PANEL II™
-
ADVANTAGES +
1. No fastener penetration ensures weather tightness performance
-
RECOMMENDED FASTENERS AND ACCESSORIES +
Location
Type of fixing
Details
Type of Fasteners
Capacity Drilling
Roofing
Clip Fixing Location
Screw Type 10-16x16 WAF
6.5 mm
Walling
Ceiling
Feed (mm)
610 (1219 : 2)
406 (1219 :3)
Cover Width (mm)
495
295

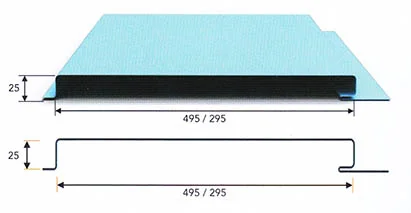

Rib Height (mm)
25
25
Maximum Allowable
Support Spacing (L/180)
300 mm
Single Span (mm)
1950
Double Span (mm)
2650
Multiple Span (mm)
3250
-
MEASUREMENT +
Feed Coil : 407 / 610 mm
Width of Coverage : 295/495 mm
Depth of Rib : 25 mm
-
THICKNESS +
Standard BMT
0.55 MM
Non standard BMT based on request
0.60 MM, 0.65 MM, 0.70 MM
-
AVAILABLE FINISHES +
ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ULTRA (AZ-200), XAL, KIRANA® (AZ-100), CLEAN COLORBOND® (AZ-150), COLORBOND® ULTRA (AZ-200), COLORBOND® XAL
-
STRENGTH +
G-300 = YIELD STRENGTH 300 MPA
-
COATINGS +
AZ-100 = 100 GR/M2
AZ-150 = 150 GR/M2
AZ-200 = 200 GR/M2
XAL = ALUMINIUM
-
APPLICATION +
Vertical surface cladding, walling, fascia, ceiling, fences, partition wall
-
DISADVANTAGES +
1. Oil Canning due to long span of support
Flat Metal surfaces (e.g LYSAGHT® PRESTIGE PANEL II™) will display waviness commonly referred to as oil canning.
this is caused by steel mil tolerances. Oil canning is a charateristic, not a defect, resulting from panels
manufactured from light gauge metal. Panels are to be factory corrective leveled to minimized oil canning. Oil
canning is not a valid reason for panel rejection -
TECHNICAL DATA +
General Specification Raw Material
Finish Coat
Yield Strength
Standard Thickness
Thickness Range
Coating Mass
Material Source
ZINCALUME®
COLORBOND®
Applications: Steel G-300
: ZINCALUME®, COLORBOND®
: 300 Mpa
: 0.55 mm BMT
: 0.5 - 0.7 mm BMT
: 150 g/m2
: Local (by Bluescope Steel Indonesia)
: AS1397-2001 AS
: NZS 2728-2007
: Walling , CeilingWalling Ceiling Feed (mm) 610 (1219 : 2) 406 (1219 : 3) Cover Width (mm) 495 295 Rib Height (mm) 25 25
LYSAGHT® PRESTIGE PANEL II™ - Support SpacingMaximum Allowable Support Spacing (L/180) 300mm Single Span (mm) 1950 Double Span (mm) 2650 Multiple Span (mm) 3250 Custom-cut lengths are available in continous length (up to 12000mm).
