LYSAGHT SPANDEK II®
-

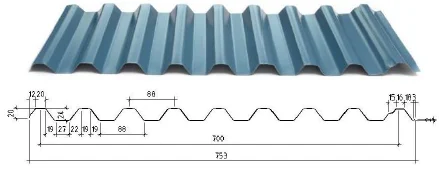

MEASUREMENT +
Feed Coil : 914 mm
Effective Width : 698 mm
Depth of Rib : 32 mm
Width of The Valley : 27 mm
Crest of the Rib : 88 mm
-
THICKNESS +
Standard BMT
0.35 MM & 0.40 MM
Non standard BMT based on request0.30 MM, 0.45 MM, 0.50 MM, 0.55 MM, 0.60 MM, 0.65 MM, 0.70 MM
-
STRENGTH +
G-550 = YIELD STRENGTH 550 MPA
-
COATINGS +
AZ-100 = 100 GR/M2
AZ-150 = 150 GR/M2
AZ-200 = 200 GR/M2
XAL = ALUMINIUM
-
AVAILABLE FINISHES +

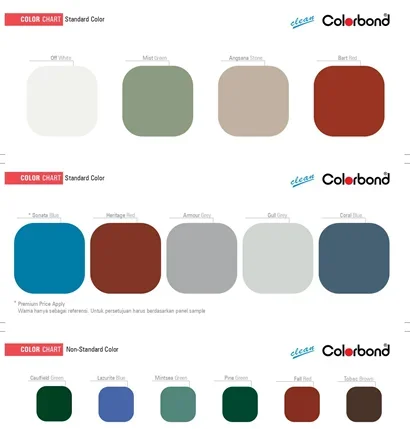

ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ULTRA (AZ-200), XAL, KIRANA® (AZ-100), CLEAN COLORBOND® (AZ-150), COLORBOND® ULTRA (AZ-200), COLORBOND® XAL
-
RECOMMENDED FASTENERS AND ACCESSORIES +
Location
Type of fixing
Details
Type of Fasteners
Capacity Drilling
Roofing
Crest fixing
Cteks 12-14x 50 HGS
6.5 mm
Walling
Valley Fixing
Cteks 12-14 x 20 HWFS
6.5 mm
Sidelap fixing
CSP 10-16 x 16 HWFS
2.5 mm
-
APPLICATION +
ROOFING, CLADDING, FASCIA, TEMPORARY FENCES
-
ADVANTAGES +
1. Best economic roofing with anti capillary side laps
2. Minimum recommended thickness : 0.35 mm bmt/0.40 mm tct
3. Minimum recommended roof pitch : 3 degree
4. Can be used for curvature roofing type
5. Can be installed with overlaps (minimum recommended overlaps 200 mm)
6. Fasten to steel using Hexagonal SDS with washer CTEKS 12-14x50 for roofing or CTEKS 12-14x20 for walling only
7. Fasten to timber using Hexagonal SDS with washer CTEKS 12-11x65 for roofing or CTEKS 12-11x25 for walling only
8. Fastener for side laps using Hexagonal SDS with washer CSP 10-16x16
9. Custom length upto 20m for trailer transporting, more than 20 m for roll on site/roll on top/mobile elevated roofing
10. Most effective for usage with two rib overlaps to prevent side leakage
-
DISADVANTAGES +
1. Posibility of leakage due to washer failure
2. Only available for Sumatra Area
-
TECHNICAL DATA +
Minimum Roof Pitch
3 degress (1:20)Min Radius for Curve
Spring Curve R = + 25 m
Crimp Curve R = + 0.80 m
Mass & Yield LYSAGHT SPANDEK II®.
Thickness (mm) Clean COLORBOND® ZINCALUME® steel BMT Kg/m Kg/m2 Kg/m Kg/m2 0.30 2.72 3.91 2.66 3.83 0.35 3.08 4.43 3.03 4.35 0.45 3.44 4.94 3.38 4.86 Max. Roof Length for Drainage
Peak rainfall
intensity
mm/hrRoof Slope 1 in 20
(3°)1 in 12
(5°)1 in 7.5
(7.5°)1 in 6
(10°)SPANDEK II® 100 111 133 154 173 150 74 89 103 115 200 55 67 77 86 250 44 53 62 69 300 37 44 51 58 400 28 33 39 43 500 22 27 31 35 Roll On-Site/Mobile Elevated Roll-Forming Based On Request
