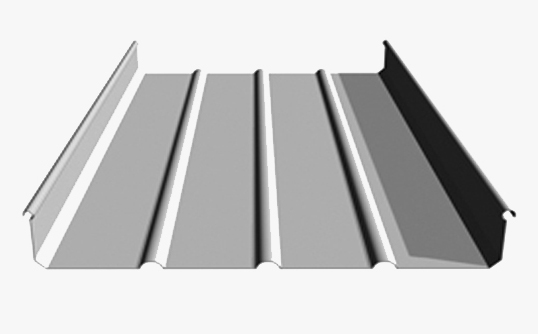

LYSAGHT® FLEX-LOK™

Feed Coil                                      : 580 mm

Efective                                        : 300 / 400/ 500

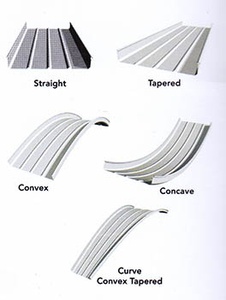

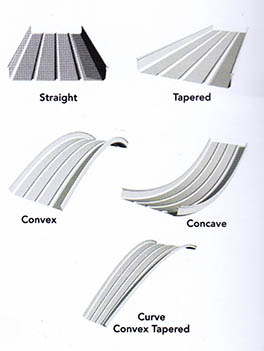

                                                      Straight 300 ,400, 500

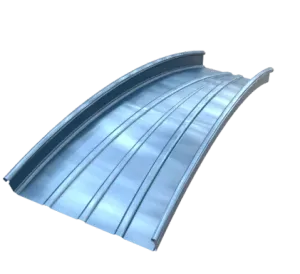

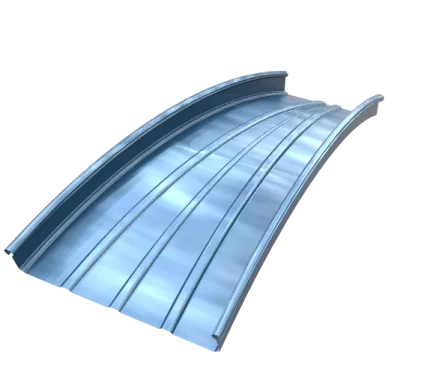

                                                      Tapered 240 - 400

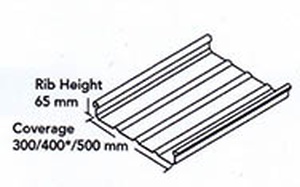

Depth of Rib                                : 65 mm

Width of The Valley                    : 395 mm

Crest of the Rib                           : 400 mm

1. Easily bend due to careless handling

2. Precise measurement of location is needed to make sure the profile fitted properly

3. Need longer installation time

1. No fastener penetration ensures weather tightness performance

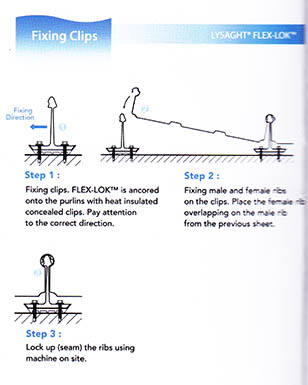

2. Advance concealed clip system provide excellent uplift resistance

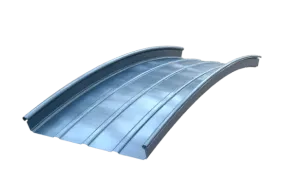

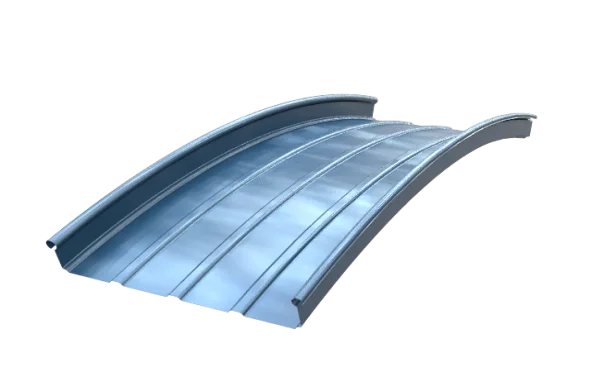

3. Available on tapered and curved sheets to fulfill the most challenging design criteria

4. Can be roll formed  on site to avoid end overlapping and to achieve. Extreme length according to the project requirements.

5. Available in a range over widths in ferrous and non ferrous material.

6. Original clip design minimize the need for roofing thermal expansion joint.

7. Specially engineered thermal pad of the clip can reduce  thermal bridging effects.

8. Excellent in rain drainage ( high ribbed profile )

AZ-100 = 100 GR/M2

AZ-150 = 150 GR/M2

AZ-200 = 200 GR/M2

XAL = ALUMINIUM

G-300 = YIELD STRENGTH 300 MPA

.

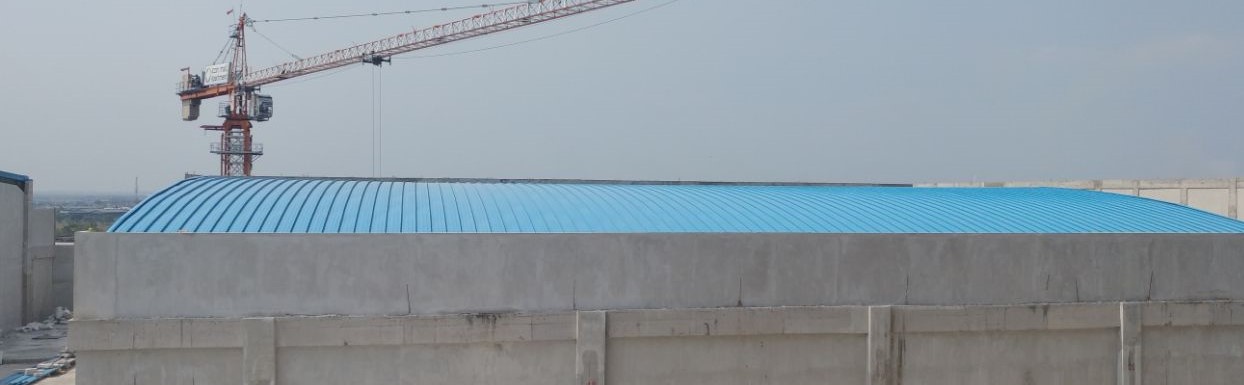

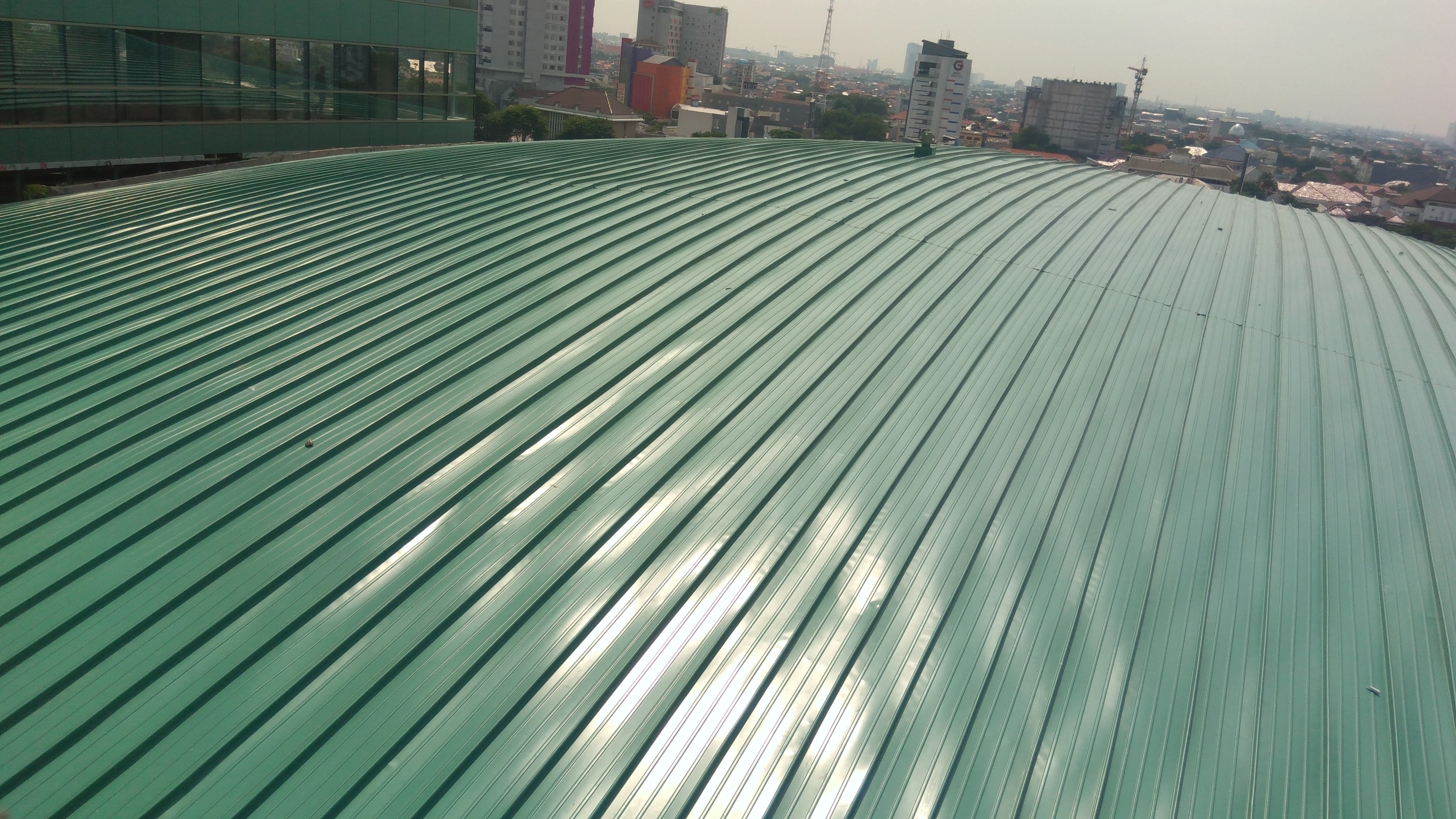

ROOFING, TAPERED ROOFING, DOME ROOFING

Standard BMT

      0.55 MM & 0.75 MM (FLEK_LOK™-Steel)
0.80 MM - 1.20 MM (FLEK_LOK™-Aluminium)

Non standard BMT based on request

0.60 MM, 0.65 MM, 0.70 MM, 0.80 MM

Specification of Steel

Recommended Support Spacing 1.5 m - 2.0 m

The standard width of LYSAGHT FLEX-LOK IS 400 MM

The limitation data may be different for various material

Use specific raw of Material

 MAXIMUM PURLIN SPACINGS

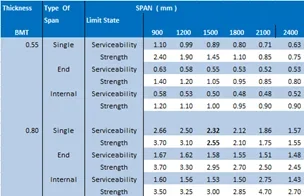

 LYSAGHT FLEX-LOK Wind Capacities ( KPA ) - Limit State

Roll On-Site/Mobile Elevated Roll-Forming Based On Request

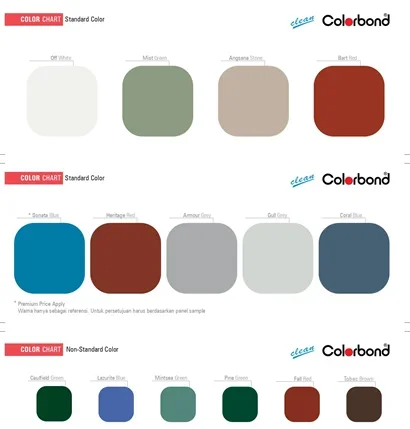

ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ultra (AZ-200), XAL, KIRANA® (AZ-100), clean COLORBOND® (AZ-150), COLORBOND® ultra (AZ-200), COLORBOND® XAL
