LYSAGHT AUSDEK®

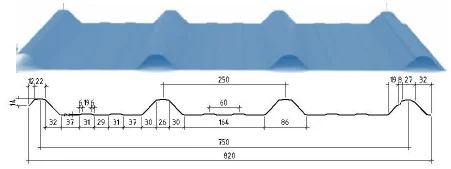

Effective Width                    : 750 mm

Depth of Rib                        : 32 mm

Width of The Valley                       : 184 mm

Crest of the Rib                            : 250 mm

Standard BMT

0.30 MM, 0.35 MM & 0.40 MM

Non standard BMT based on request

0.20 MM, 0.25 MM, 0.30 MM, 0.45 MM, 0.50 MM, 0.55 MM

G-550 = YIELD STRENGTH 550 MPA

AZ-100 = 100 GR/M2

AZ-150 = 150 GR/M2

AZ-200 = 200 GR/M2

XAL = ALUMINIUM

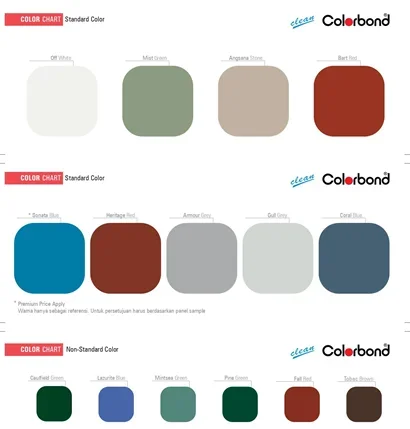

ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ULTRA (AZ-200), XAL, KIRANA® (AZ-100), CLEAN COLORBOND® (AZ-150), COLORBOND® ULTRA (AZ-200), COLORBOND® XAL

ROOFING, CLADDING, FASCIA, TEMPORARY FENCES

1. Best economic roofing with anti capillary side laps

2. Minimum recommended thickness : 0.35 mm bmt/0.40 mm tct

3. Minimum recommended roof pitch : 3 degree

4. Can be used for curvature roofing type

5. Can be installed with overlaps (minimum recommended overlaps 200 mm)

6. Fasten to steel using Hexagonal SDS with washer CTEKS 12-14x50 for roofing or CTEKS 12-14x20 for walling only

7. Fasten to timber using Hexagonal SDS with washer CTEKS 12-11x65 for roofing or CTEKS 12-11x25 for walling only

8. Fastener for side laps using Hexagonal SDS with washer CSP 10-16x16

9. Custom length upto 20m for trailer transporting, more than 20 m for roll on site/roll on top/mobile elevated roofing

1. Posibility of leakage due to washer failure

2. Only available for Sumatra Area

Minimum Roof Pitch

3 degress (1:20)

Min Radius for Curve

Spring Curve R = + 25 m

Crimp Curve R = + 0.50 m

Mass & Yield LYSAGHT AUSDEK®.

Max. Roof Length for Drainage

Roll On-Site/Mobile Elevated Roll-Forming Based On Request
