• DISADVANTAGES +

    1. Need longer time to install due to many accessories are needed

  • APPLICATION +

    ROOFING

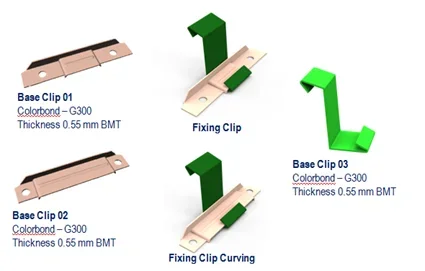

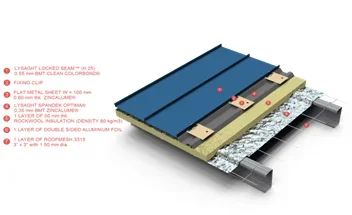

  • RECOMMENDED FASTENERS AND ACCESSORIES +



    Location

     Type of fixing

    Details

    Type of Fasteners

    Capacity Drilling

    Roofing

    Clip Fixing Location



       Screw Type 10-16x16 WAF



    6.5 mm

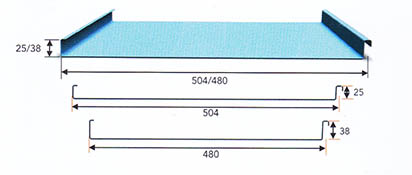

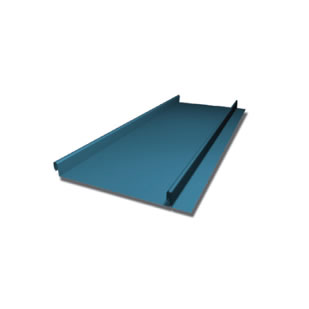

  • MEASUREMENT +

    Feed Coil                                    : 605 mm

    Cover Width                               : 504/ 480 mm

    Depth of Rib                               : 25mm / 38 mm

  • STRENGTH +

    G-300 = YIELD STRENGTH 300 MPA

  • AVAILABLE FINISHES +

    ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ULTRA (AZ-200), XALKIRANA® (AZ-100), CLEAN COLORBOND® (AZ-150), COLORBOND® ULTRA (AZ-200), COLORBOND® XAL

  • THICKNESS +

    Standard BMT

    0.55 MM

    Non standard BMT based on request

    0.60 MM, 0.65 MM, 0.70 MM

  • COATINGS +

    AZ-100 = 100 GR/M2

    AZ-150 = 150 GR/M2

    AZ-200 = 200 GR/M2

    XAL = ALUMINIUM

  • ADVANTAGES +

    1. A modest and discreet roof
    2. Specially designed height at 25/38mm contributes to modernty, lightness and regularity of the roof architecture
    3. Minimalism and simplicity effect
    4. Gives a distinctive appearance when used on more complex shapes

  • TECHNICAL DATA +



    Raw Material
    Finish Coat
    Yield Strength
    Standard Thickness
    Thickness Range
    Feed
    Cover Width
    Rib Height
    Coating Mass
    Material Source

    ZINCALUME®
    COLORBOND®

    Minimum Recommended Roof Pitch
    Recommended Support Spacing

    Applications
    : Steel G-300
    : ZINCALUME®, Clean COLORBOND®
    : 300 Mpa
    : 0.55 mm BMT
    : 0.5 - 0.7 mm BMT
    : 605 mm
    : 504/ 480mm
    : 25/ 38mm
    : 150 g/m2
    : Local (by Bluescope Steel Indonesia)

    : AS1397-2001 AS
    : NZS 2728-2007

    : 3°
    : 600

    : Roofing

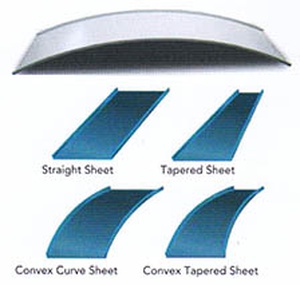

    LYSAGHT® LOCKED SEAM ™ - CURVE CAPACITY

    Panel Type Minimum
    Length
    (mm)
    Maximum
    Length
    (mm)
    Minimum
    Width
    (mm)
    Maximum
    Width
    (mm)
    Minimum
    Radius
    (mm)
    Sprung
    Radius
    (mm)
    Straight  800 12.000  535  605  -  -
    Tapered  1.000 10.000  100  490  -  -
    Straight Curved  800 12.000  535  535  1500 30.000
    Tapered And Curved  1.000 10.000  300  490  1500 30.000
