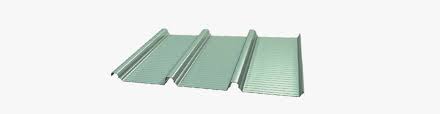

LYSAGHT® KLIP-LOK OPTIMA®
-

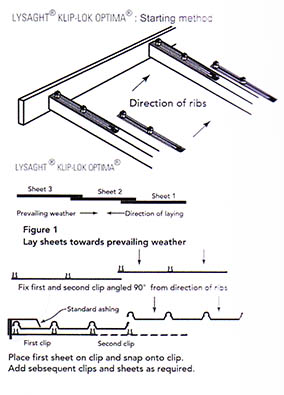

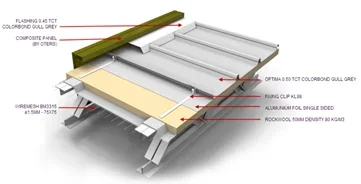

RECOMMENDED FASTENERS AND ACCESSORIES +
Location
Type of fixing
Details
Type of Fasteners
Capacity Drilling
Roofing
Clip Fixing Location
Cteks 12-14 x 30 HWFS
6.5 mm
-

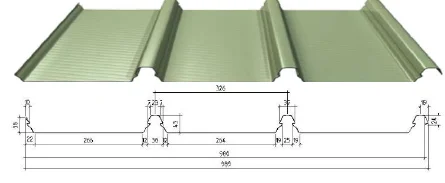

MEASUREMENT +
Feed Coil : 1219 mm
Rib Depth : 980 mm
Depth of Rib : 43 mm
Width of The Valley : 266 mm
Crest of the Rib : 326 mm
-
COATINGS +
AZ-100 = 100 GR/M2
AZ-150 = 150 GR/M2
AZ-200 = 200 GR/M2
XAL = ALUMINIUM
-
STRENGTH +
G-550 = YIELD STRENGTH 550 MPA
-
DISADVANTAGES +
1. Cannot be used for curvature roofing type
2. Cannot be bent easily
3. Better to be installed with no overlaps
-
AVAILABLE FINISHES +
ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ULTRA (AZ-200), XAL, KIRANA® (AZ-100), CLEAN COLORBOND® (AZ-150), COLORBOND® ULTRA (AZ-200), COLORBOND® XAL
-
APPLICATION +

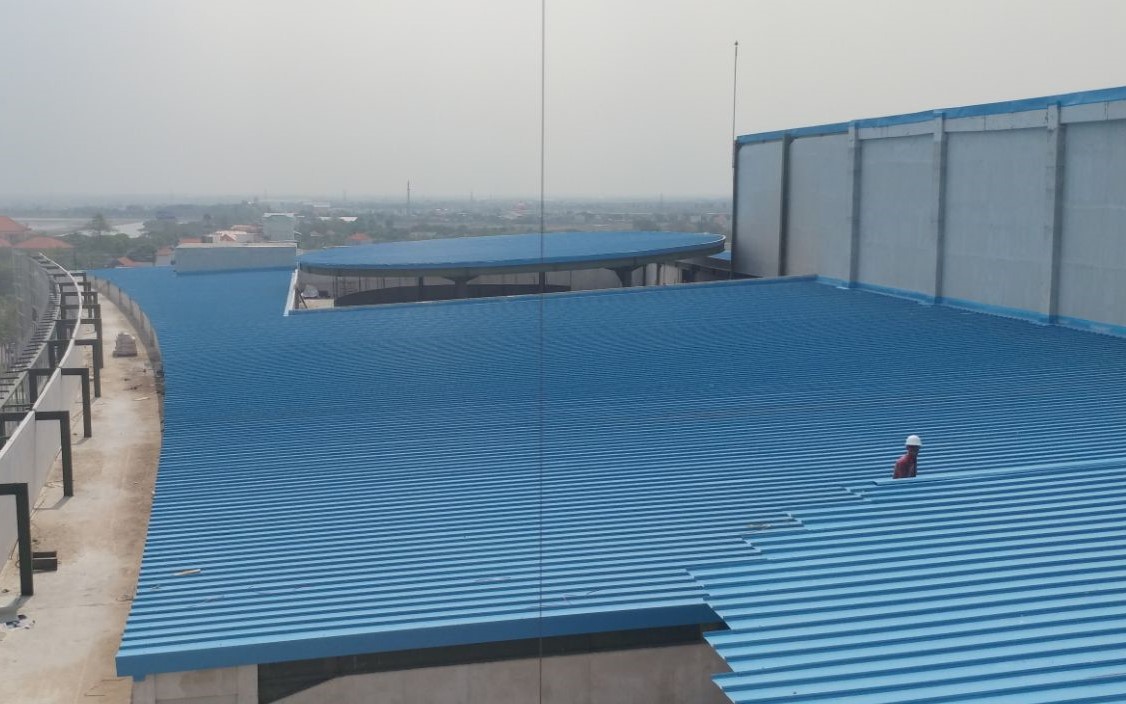

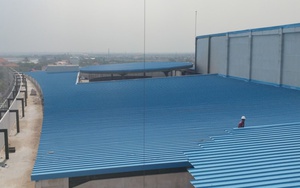

ROOFING
-
THICKNESS +
Standard BMT
0.40 MM & 0.45 MM
Non standard BMT based on request
0.50 MM, 0.55 MM, 0.60 MM, 0.65 MM, 0.70 MM
-
TECHNICAL DATA +
Minimum Roof Pitch
2 degress (1:50)
Min Radius for Curve
Spring Curve R = + 80 m
LYSAGHT® KLIP-LOK OPTIMA® (NO EDGE STIFFENERS) Type of Span BMT (mm) 0.40 0.45 Roofs (mm)
Single Span
End Span
Internal Span
Unstiffened Eaves Overhang
Stiffened Eaves Overhang
800
800
1200
150
400
925
1050
1825
150
400Maximum roof lenghts for drainage measured drom ridge to gutter (m)
Peak rainfall
intensity (mm/hr)Roof Slope (degrees) 2 3 4 5 8 10 100 502 588 663 732 873 1003 150 334 392 442 488 582 669 200 251 294 331 366 436 502 250 201 235 265 293 349 401 300 167 196 221 244 291 334 400 125 147 166 183 218 251 500 100 118 133 146 175 201 Mass weight kg/ m2
Berat kg/m2
Tebal ( bmt )
Colorbond
Zincalume
Kirana
Abadi
0.40
4.80
4.71
4.71
4.64
0.45
5.36
5.27
5.27
5.20
0.50
5.92
5.83
5.82
5.76
0.55
6.47
6.39
6.38
6.32
0.60
7.03
6.95
6.94
6.88
0.65
7.59
7.51
7.5
7.43
0.70
8.15
8.06
8.06
7.99
Maximum Purlin Spacing
Roofing
Tebal
Purlin Spacing ( mm )
( BMT )
Single
End
Internal
0.40
800
800
1200
0.45
925
1050
1825
Cladding
Tebal
Jarak Rangka Maksimum ( mm )
( BMT )
Single
End
Internal
0.40
1580
1720
2810
0.45
1780
1940
3160
Max. Roof Length for Drainage
Intensitas curah hujan
1 in 20
1 in 12
1 in 7.5
1 in 6
( mm /jam )
3?
5?
7
10?
100
588
735
873
1003
200
294
366
436
502
300
196
244
291
334
400
147
183
218
251
500
118
146
175
201

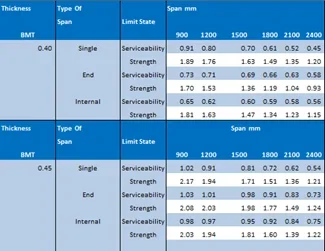

LYSAGHT KLIP-LOK®Optima Wind Capacities ( KPA ) - Limit State
Roll On-Site/Mobile Elevated Roll-Forming Based On Request
-
ADVANTAGES +
1. Most economic roofing with fixing klip and hidden screw
2. Minimum recommended thickness : 0.40 mm bmt/0.45 mm tct
3. Minimum recommended roof pitch : 2 degree
4. Fasten to steel using SDS 12-14x30 or Hexagonal SDS 12-14x30
5. Fasten to timber (softwood) using Hexagonal SDS 12-14x40
6. Fasten to timber (hardwood) using Hexagonal SDS 12-14x25
7. Custom length upto 20m for trailer transporting, more than 20 m for roll on site/roll on top/mobile elevated roofing
