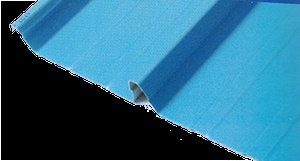

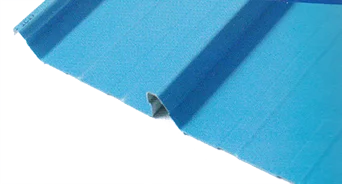

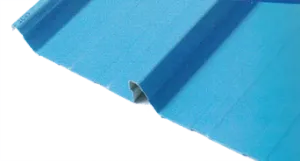

LYSAGHT KLIP-LOK®
-
RECOMMENDED FASTENERS AND ACCESSORIES +
Location
Type of fixing
Details
Type of Fasteners
Capacity Drilling
Roofing
Clip Fixing Location
Mteks 10-24-22 WAF
6.5 mm
-
STRENGTH +
G-550 = YIELD STRENGTH 550 MPA
-

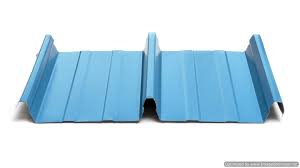

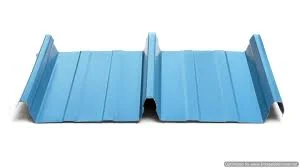

MEASUREMENT +

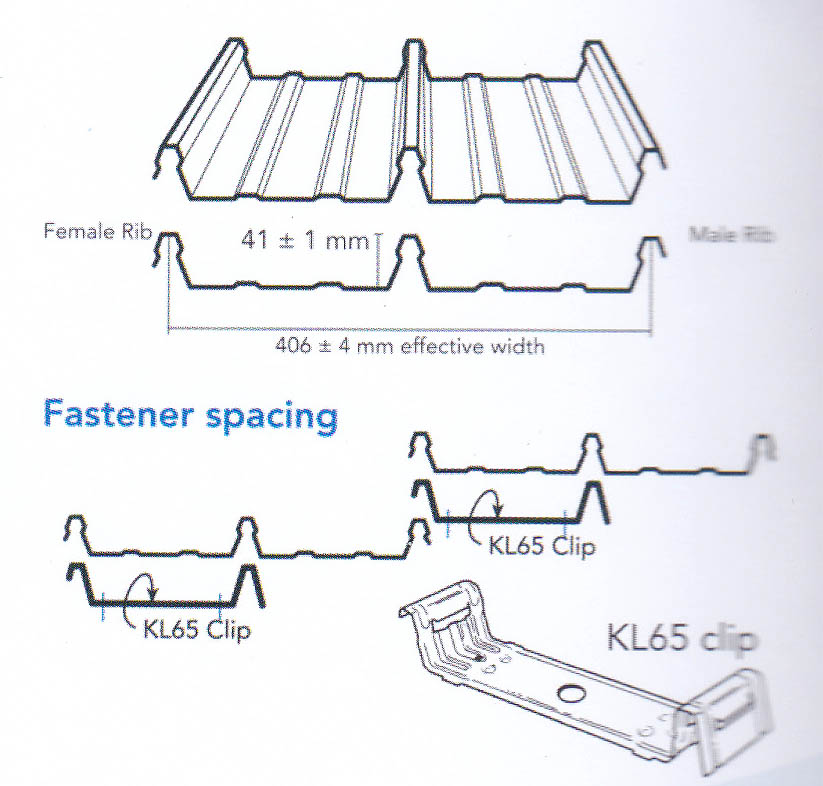

Feed Coil : 578 mm
Cover Width : 406 mm
Depth of Rib : 41 mm
-
DISADVANTAGES +
1. Cannot be used for curvature roofing type
2. Cannot be bent easily
3. Better to be installed with no overlaps
-
ADVANTAGES +

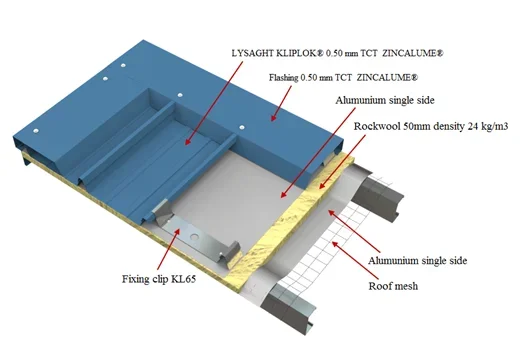

1. Best roofing with fixing klip and hidden screw
2. Minimum recommended thickness : 0.40 mm bmt/0.45 mm tct
3. Minimum recommended roof pitch : 2 degree
4. Lowest leakage problems
5. Fasten to steel using SDS MTEKS 10-16x16 or SDS MTEKS 10-16x22 for used with insulation
6. Fasten to timber (hardwood) using SDS MTEKS 10-12x25 or SDS MTEKS 10-12x45 for used with insulation
7. Fasten to timber (softwood) using Spiral nail dia. 3.75 mm x 40 or dia. 3.75 mm x 66 for used with insulation
8. Custom length upto 20m for trailer transporting, more than 20 m for roll on site/roll on top/mobile elevated roofing
-
COATINGS +
AZ-100 = 100 GR/M2
AZ-150 = 150 GR/M2
AZ-200 = 200 GR/M2
XAL = ALUMINIUM
-
APPLICATION +
ROOFING
-
THICKNESS +
Standard BMT
0.45 MM
Non standard BMT based on request0.50 MM, 0,55 MM, 0,60 MM, 0,65 MM, 0,70 MM
-
TECHNICAL DATA +
Minimum Roof Slope
2 degress (1:30)Min Radius for Curve
Spring Curve R = + 80 m
Max. Roof Length for Drainage
Peak rainfall
intensity
mm/hrRoof slope 1 in 50
(1°)1 in 30
(2°)1 in 20
(3°)1 in 12
(5°)1 in 7.5
(7.5°)1 in 6
(10°)
KLIP-LOK® 406100 375 467 548 682 813 934 150 250 311 365 454 542 623 200 188 234 274 314 406 467 250 150 187 219 273 235 374 300 125 156 183 227 271 311 400 94 117 137 170 203 234 500 75 93 110 136 163 187 MASS LYSAGHT KLIP-LOK
WEIGHT kg/m2
THICKNESS
( bmt )
Colorbond
Zincalume
Kirana
Abadi
0.40
4.80
4.71
4.71
4.64
0.45
5.36
5.27
5.27
5.20
0.50
5.92
5.83
5.82
5.76
0.55
6.47
6.39
6.38
6.32
0.60
7.03
6.95
6.94
6.88
0.65
7.59
7.51
7.5
7.43
0.70
8.15
8.06
8.06
7.99

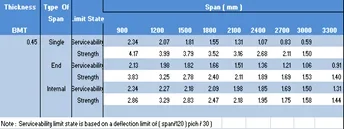

PURLIN SPACING MAXIMUM
ROOFING
Tebal
Maximum spacing of support ( mm )
( BMT )
Single
End
Internal
0.40
1400
1460
1800
0.45
1650
2050
2250
WALLING
THICKNESS
Maximum spacing of support ( mm )
( BMT )
Single
End
Internal
0.40
1870
1870
1870
0.45
2110
2110
2110
Roof Drainase
Intensitas
Roof slope ( ?)
Curah Hujan
1 in 50
1 in 30
1 in 20
1 in 12
1 in 7.5
1 in 6
( mm /jam )
1?
2?
3?
5?
7.5?
10?
100
375
467
548
682
813
934
150
250
311
365
454
542
623
200
188
234
274
314
406
467
250
150
187
219
273
235
374
300
125
156
183
227
271
311
400
94
117
137
170
203
234
500
75
93
110
136
163
187
LYSAGHT KLIP-LOK® Wind Capacities ( KPA ) - Limit State
Roll On-Site/Mobile Elevated Roll-Formin Based On Request
-
AVAILABLE FINISHES +
ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ULTRA(AZ-200), XAL, KIRANA® (AZ-100), CLEAN COLORBOND® (AZ-150), COLORBOND® ULTRA (AZ-200), COLORBOND® XAL
