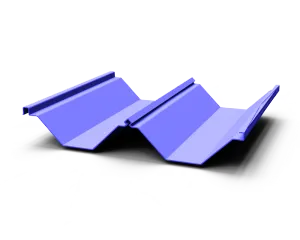

LYSAGHT® ULTRA RIB™
-

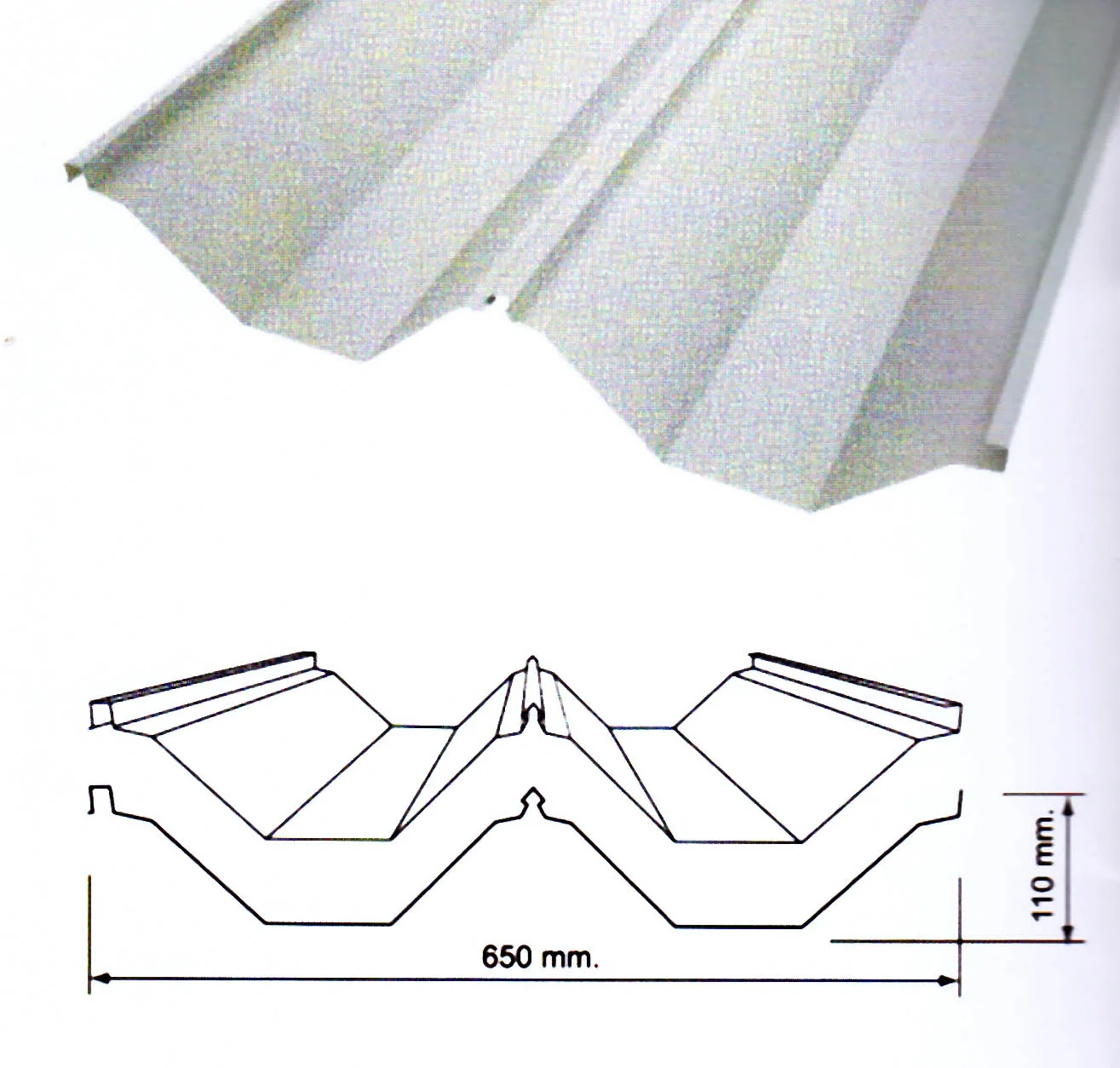

MEASUREMENT +
Feed Coil : 914 mm
Cover Width : 650 mm
Depth of Rib : 110 mm
-
THICKNESS +
Standard BMT
0.45 MM, 0.55 MM, 0.75 MM
Non standard BMT based on request
0.50 MM, 0.60 MM, 0.65 MM, 0.70 MM
-
STRENGTH +
G-300 = YIELD STRENGTH 300 MPA
-
COATINGS +
AZ-100 = 100 GR/M2
AZ-150 = 150 GR/M2
AZ-200 = 200 GR/M2
XAL = ALUMINIUM
-
AVAILABLE FINISHES +
ABADI® (AZ-100), ZINCALUME® (AZ-150), ZINCALUME® ULTRA (AZ-200), XAL, KIRANA® (AZ-100), CLEAN COLORBOND® (AZ-150), COLORBOND® ULTRA (AZ-200), COLORBOND® XAL
-
APPLICATION +
ROOFING
-
ADVANTAGES +
1. Excellent waterproof
2. Insulated option flexibility
3. Color in seaming roof
4. High Quality material
5. Cost Saving
6. Smart Apperance
-
DISADVANTAGES +
1. NEED LONGER TIME TO INSTALL DUE TO ACCESORIES NEEDED
-

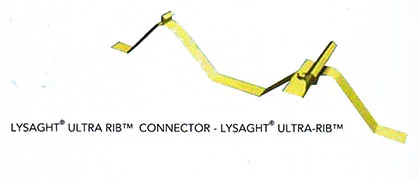

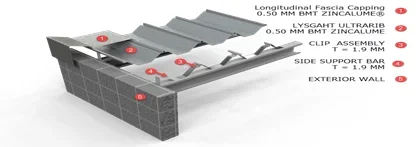

RECOMMENDED FASTENERS AND ACCESSORIES +
Location
Type of fixing
Details
Type of Fasteners
Capacity Drilling
Roofing
Clip Fixing Location
Screw Type 10-16x16 WAF
6.5 mm

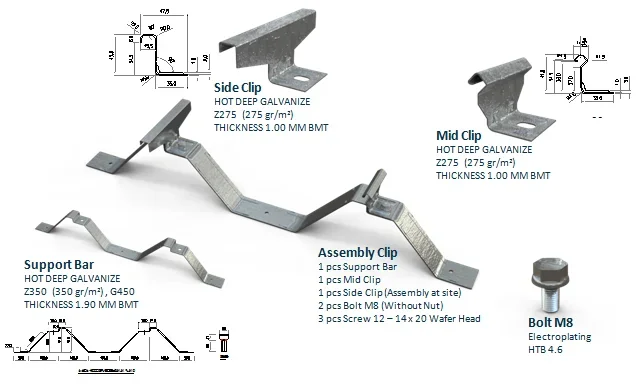

SIDE SUPPORT BAR EAVE STEEL FILLER NO 1 EAVE STEEL FILLER NO 2
EAVE STEEL VENTILATION DRIP ANGLE RIDGE STEEL FILLER
-
TECHNICAL DATA +
Minimum Roof Pitch
2 degress (1:50)
Min Radius for Curve
Spring Curve R = + 80 m
Base Material ZINCALUME® , Clean COLORBOND® Base metal thickness 0.45mm ; 0.55mm ; 0.75mm; Cover width 650mm Rib Height 110mm Length Lenght dependend on customer's requirement Tolerance Lenght : +0mm, -15mm
Cover width: +4mm, -4mmCoating Mass 150g/m2 Yield Strength 300 MPa ZINCALUME® steel meets
Australian standardAS1397-G300-AZ150 Clean COLORBOND® steel meets
Australian standardAS/NZS 2728 MASS LYSAGHT ULTRA RIB
WEIGHT kg/m2
THICKNESS
( bmt )
Colorbond
Zincalume
Kirana
Abadi
0.40
4.32
4.23
4.22
4.16
0.45
4.89
4.80
4.79
4.73
0.50
5.46
5.37
5.36
5.30
0.55
6.02
5.94
5.93
6.43
0.60
6.59
6.51
6.50
7.00
0.65
7.16
7.08
7.07
7.57
0.70
7.73
7.65
7.64
8.14
MAXIMUM PURLIN SPACINS
ROOFING
Thickness
Maximum Purlin Spacing ( mm )
( BMT )
Single
End
Internal
0.50
2000
3000
3500
Max. Roof Length for Drainage
Rainfall rate
Roof slope ( ?)
( mm /hr )
3?
5?
7?
10?
100
24,467
30,458
36,321
41,750
200
12,234
15,229
18,160
20,875
300
8,156
10,153
12,107
13,917
400
6,117
7,614
9,080
10,437
500
4,893
6,092
7,264
8,350
