CITICON FLOOR PANEL

CITICON FLOOR PANEL
CITICON FLOOR PANEL
CITICON FLOOR PANEL
CITICON FLOOR PANEL
CITICON FLOOR PANEL
CITICON FLOOR PANEL
CITICON FLOOR PANEL
CITICON FLOOR PANEL
  • ADVANTAGES +

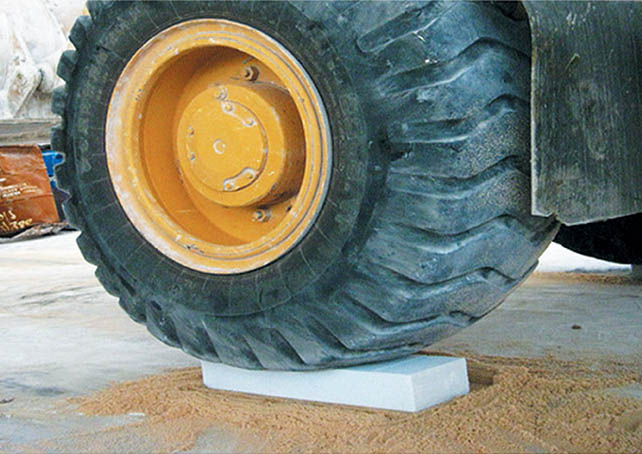

    1. GOOD EARTHQUAKE RESISTANCE

    2. FIREPROOF

    3. GOOD HEAT INSULATION

    4. SOUND PROOF

    5. LOW WATER ABSORPTION

    6. COST EFFICIENT

    7. QUICK AND NEAT INSTALLATION

  • TECHNICAL DATA +

    Spesifikasi Teknis Panel Lantai Citicon
    Panjang, L(mm)             : 1470;1720;1970;2220;2470;2720;2970;3220;3470;3720;3920
    Lebar,T (mm)                : 600
    Tebal, T(mm)                : 125; 150; 175

    1 m3 menjadi luasan 8 m2
    Berat jenis kering [?]         : 700 kg/m3
    Berat Lapangan [?]            : 780 kg/m3
    Kuat tekan [o]                   : > 6.0 N/mm2
    Daya Konduksi panas []     : 0.2 W/mK
    Beban Imposed*               : 405 kg/m2

    Dimensi dan Kode Panel Lantai

    KODE PANEL L
    [mm]    		 W
    [mm]    		 H
    [mm]    		 Berat per Panel
    [kg]    		 Jumlah /m3
    [pcs]
    PLC 1500 R 125 1470 600 125 86.00 9.07
    PLC 1750 R 125 1720 600 125 100.62 7.75
    PLC 2000 R 125 1970 600 125 115.25 6.77
    PLC 2250 R 125 2220 600 125 129.87 6.01
    PLC 2500 R 125 2470 600 125 144.50 5.40
    PLC 2750 R 125 2720 600 125 159.12 4.90
    PLC 3000 R 125 2970 600 125 173.75 4.49
    PLC 3250 R 125 3220 600 125 188.37 4.14
